作者

[Pwnage Tool教學] 有圖 iPhone 成功升級 1.1.4 步驟, 加升級後常見問題集及解決方案, 可上Beta 3(5A240d)

javacom

版主

文章: 3083

于 2008-04-07 02:41

[Pwnage Tool教學] 有圖 iPhone 成功升級 1.1.4 步驟, 可上 2.0 Firmware Beta 3(build 5A240d) (待續)

This guide is for those who want to upgrade iPhone (with Bootloader 3.9/4.6) firmware from 1.1.3 (or below) to firmware 1.1.4 using PWNAGE tools from Dev Team. http://iphone-dev.org/
此方法是用iPhone Dev Team 的 PwnTool 將 iPhone 由 1.1.3 或以下的軟體版本升級至 1.1.4

If you have firmware 1.1.4 on your iPhone and is now working fine and don't want to test the buggy 2.0 firmware, there is no reason for you to use PWNAGE now. You can wait and see what available solutions that you will have in the near future, as other developers will release their new unlocking tools when Apple released its official firmware 2.0.
如果你的iPhone已是1.1.4 的軟體版本, 在使用上沒有問題並且不需急於嘗試問題很多的 2.0 Beta 的軟體版本, 你可等侍其他升級方法, 相信在 2.0 的軟體版本正式出爐時會有更多選擇.

If you have firmware 1.1.4 already and want to experience the beta 2.0 firmware, follow this guide
如果你的iPhone已是1.1.4的軟體版本及想嘗試升級 2.0 Beta的軟體版本你可參考此方法
http://iclarified.com/entry/index.php?enid=893

Why use Pwnage Tool?
為何要用 Pwnage Tool ?
(1) This unlocking tool allows you to upgrade to 2.0 beta firmware after you first goto the 1.1.4 by following this guide
    用此方法升級至 1.1.4的軟體版本後你可以嘗試升級 2.0 Beta的軟體版本
(2) Ｄon't like ZiPhone, iPlus, iLiberty etc and these tools are not working for me. I want to keep my bootloader 4.6 unchanged.
    不想/不成功使用其他方法例如ZiPhone,iPlus 或 iLiberty等, 不想將bootloader 4.6降級
(3) Ｗant to try new things and I can take the risk of bricking iPhone.
    想嘗試新方法, 雖然用新方法升級是有風險.
(4) Want to test iPhone SDK beta 2 program in firmware 2.0
    想嘗試iPhone SDK 自製軟件
(5) Ｗant to create a backup using the custom ipsw feature for the PWNAGE tools
   想嘗試用自製軟體版本備份整個iPhone Filesystem.

Limitations & Requirements
此方法的限制及要求
(1) It is a new tool to unlock, so there are risks in using it
    新方法升級是有風險.
(2) PWNAGE Tools 1.0 has Mac OS X version (Windows version will be released very soon)
    現時只有Mac OS X 版本, 但很快便有 Windows版本
(3) Mac OS X 10.4.11 or above (PPC or Intel are both OK)
    Mac OS X 10.4.11版本以上, PPC 或 Intel CPU都可使用
(4) You cannot restore directly to firmware 2.0 beta, you must start with firmware 1.1.4 and PWN the iPhone first
    不能直接升級2.0Beta的軟體版本要由1.1.4的軟體版本開始進行PWN iPhone, 才再升級2.0Beta的軟體版本
(5) This tool will only support upgrade to 1.1.4/1.2.0 beta/2.0 beta firmware.
    此工具只支援升級1.1.4/1.2.0 beta/2.0 beta的軟體版本
(6) This tool will not solve the iTunes unknown error (1011 etc), you have to solve this issue first. Please refer to this to solve the problem of iTunes error message
    此工具不能解決iTunes unknown error 1011, 你必須先解決此 iTunes 的問題.要解決此 iTunes 的問題,請參考
     http://support.apple.com/kb/TS1275

DFU (Device Firmware Upgrade) mode and Recovery Mode
You have to know how to make your iPhone go to DFU mode and Recovery Mode

DFU Mode vs Recovery mode - DFU (device firmware upgrade) mode is a special mode that bypasses the operating system and lets you upgrade the device. When in DFU mode, the phone will have no display on the screen. Recovery mode is more common. When in Recovery mode, the phone will have a connect to iTunes graphic on the screen. In this mode you can also restore or upgrade your device, but it is not as drastic as DFU mode. Many restore problems can be solved by using DFU mode.

你需要知道怎樣將iPhone 進入DFU mode及Recovery Mode
For DFU mode you need to
進入DFU mode你需要
(a) iPhone is power on but not connected to USB cable
假設開始時iPhone是開著的, 不連接USB Cable
(b) Launch iTunes in Mac and connect iPhone to USB cable which should be connected to the Mac USB Port
在電腦開啟iTunes, 才將iPhone連接USB
(c) You will be asked that there is a new firmware 1.1.4 available, Click Cancel/No download/No Install
iTunes 會提示有新軟體版本下載, 按"取消/不要下載/不要安裝"
(d) Press Power/sleep button and Home button of iPhone and hold it for about 7 seconds until the screen of iPhone is completely black
在iPhone按Power/Sleep(右上)及Home(正面下中)按鍵不放手約7秒至iPhone螢幕變全黑
(e) Allow 2 seconds after screen turns black(iTunes will now know that iPhone is in DFU), release iPhone's power button but continue holding home button of iPhone
iPhone螢幕會變全黑, 變全黑後約2秒(好讓iTunes知道iPhone進入DFU),放開iPhone的 Power/sleep(右上)按鍵但iPhone的Home(正面下中)按鍵仍然不放手
(f) In iTunes a messgae box will appear (then you can release iPhone Home Button) then click "OK" in iTunes
iTunes 會顯示需要進行回復, 此時可放開iPhone 的Home按鍵, 在iTunes 按"確定"

For Recovery mode you need to
(a) iPhone is not connected to USB cable
假設開始時iPhone是開著的, 不連接USB Cable
(b) Launch iTunes on your Mac
在電腦開啟iTunes
(c) Power off your iPhone and pressing the Power/sleep button for 3 second and slide to power off
關閉iPhone, 按Power/Sleep(右上)約3秒, 看見slide to power off根據指示時將iPhone關閉
(e) Press Home button of iPhone and while continue holding and pressing the home button of iPhone, connect iPhone to the usb cable.
按著iPhone的Home(正面下中)按鍵不放手及將iPhone連接USB Cable
(f) In iTunes a messgae box will appear (then you can release iPhone Home Button) then click "OK" in iTunes
iTunes 會顯示需要進行回復, 此時可放開iPhone 的Home按鍵, 在iTunes 按"確定"

此升級方法是參考以下再修改以符合需要
The steps are replicated from various how to and FAQ sources (as below) and modified to suit the needs of this guide
http://hackint0sh.org/forum/showthread.php?t=36686
http://www.modmyifone.com/wiki/index.php/PwnageTool_OSX_Usage_Guide_PWN_It
http://iclarified.com/entry/index.php?enid=893

Steps to goto firmware 1.1.4 using PWN Tools
用 Pwn Tools 升級步驟
(1) Sync and Back up your Data　(you can use scp to backup data)
確定iPhone可同步iTunes及在升級前進行一次同步及備份 (可用 SCP備份方法）
(1a) Sync iPhone contacts, Safari bookmarks, photos to iTunes.
(1b) Back up your developed programs or Applications / Application data from your iPhone to your Mac, you can use Terminal scp or cyberduck
(1c) Back *.db from iPhone to Mac using Terminal scp or cyberduck

(2) Download files (It is important to check the md5 sum of these downloads as bootloader patch is a dangerous tool)
下載軟體版本及工具(請檢查 MD5SUM以確保下載正確)

(2a) Download the PwnageTool
下載PwnageTool
md5 PwnageTool_1.0.zip = 2d528c9da1082ee3cf6b8f0cb2f8256e
http://ipp.iphwn.org/PwnageTool_1.0.zip

md5 PwnageTool_1.1.zip = db3675a50831647e9e0ff03ccbb51de6
http://xs1.iphwn.org/appcast/PwnageTool_1.1.zip

Double click the downloaded file(PwnageTool_1.0.zip or PwnageTool_1.1.zip) to extract PwnageTool (if you are using firefox)
If you use Safari, it will automatically unzip and extracted in your download folder
如果你用Firefox, 你需要用滑鼠雙擊才解壓. 如果你用Safari, 下載的zip棒檔會自動解壓

(2b) Download the Firmware 1.1.4 (right click the link below and save as iPhone1,1_1.1.4_4A102_Restore.ipsw)
下載1.1.4軟體版本(用滑鼠右鍵擇 "Download Linked File As" 儲存檔案為iPhone1,1_1.1.4_4A102_Restore.ipsw
http://appldnld.apple.com.edgesuite.net/content.info.apple.com/iPhone/061-4313.20080226.Sw39i/iPhone1,1_1.1.4_4A102_Restore.ipsw

(2c) Download 3.9 and 4.6 Bootloader (md5 bootloaders.rar = 502df7e0eb4ba4f77e103527cd36f69a)

(md5 BL-39.bin = a34410fe8b56cc57b2a3183d6ecc6b5e)

(md5 BL-46.bin = 1c15fabcbbfa4fc240ad66bae4da617e)

(you may need StuffIt Expander http://www.apple.com/downloads/macosx/system_disk_utilities/stuffitexpander.html to unrar this file)
下載3.9 and 4.6 Bootloader, 可能需要StuffIt Expander才可解壓
http://rapidshare.com/files/104494661/bootloaders.rar
or
http://www.cocoatouchdev.com/javacom/download/bootloaders.rar

(3) You need to know your administrator username and password for the Mac that you are using. This is normally the first username and password that you created when you first use the Mac or the one that you are now using.
你需要有Administrator Right 的 username 及 Password

(4) Put your iPhone into DFU mode and Hold down the Option and click Restore to firmware 1.1.4 that downloaded in step 2(b) then click the Open button.
將iPhone 進入 DFU Mode及在iTunes顯示需要進行回復訊息後,在鍵盤上按Option及iTunes按 "回復"
及選擇在2(b)步驟下載的1.1.4軟體版本, 滑鼠按 "Open"

(5) Then the iTunes will show that restoring iPhone software is in progress and will take several minutes
iTunes 會顯示正進行回復, 並等待數分鐘

(6) After restore, disconnect usb cable and exit iTunes
回復後, 拔除 USB Cable 及關閉iTunes

(7) hold down your Sleep/Wake button for 3 seconds. The power slider will appear. Slide this to the right to power off your iPhone.
關閉iPhone, 按Power/Sleep(右上)約3秒, 看見slide to power off根據指示時將iPhone關閉

(8) Double click PwnageTool to launch the application.
在電腦開啟　Pwnage Tool

(9) If prompted that PwnageTool is an application that was downloaded from the internet click the Open button.
滑鼠接 "Open"

(10) If you would like PwntageTool to automatically check for update then click the Yes button.
如你需要 Pwnage Tool自動更新滑鼠選擇 "Yes"

(11) Click the Browse .ipsw button in PwnageTool.
滑鼠按 "Browse .ipsw"

(12) A window will appear in which you should choose the 1.1.4 firmware that downloaded in step 2(b) then click the Open button.
選擇在2(b)步驟下載的1.1.4軟體版本, 滑鼠按 "Open"

(13) Click the iPwner button
滑鼠按 "iPwner"

(14) You will be asked to connect your iPhone and put it into recovery mode.
會提示你將iPhone進入Recovery Mode

(15) hold down the Home button as you connect the iPhone to the USB cable. After a few seconds the recovery screen will appear. (iTunes logo and cable).
iPhone已關閉, 按著iPhone的Home(正面下中)按鍵不放手及將iPhone連接USB Cable, 此時iPhone會顯示回復圖案

(16) PwnageTool will then let you know your phone is being pwned and to please wait for a reboot.
Then the iPhone screen will show some running test and a pineapple logo will appear
PwnTools 會顯示正進行Pwn, 並等待數分鐘, iPhone會出現連續文字及出現菠蘿logo然後重新啟動

(17) After reboot, disconnect iPhone from USB cable
當iPhone重新啟動後, 便可拔除 USB Cable 及關閉iTunes

(18) click the IPSW Builder button in PwnageTool.
From the menu that appears select:
在PwnageTool內滑鼠接 "IPSW Builder"
滑鼠選擇
- Enable baseband update
- Neuter bootloader
- Unlock baseband
- Activate phone
Then click the OK button.
及按 "OK"

pwnage Tool version 1.0

pwnage Tool version 1.1

(19) PwnageTool will now ask you for the bootloader images.
會提示提供 Bootloader 擋案
Click the browse button for the bootloader 3.9 image and select BL-39.bin file from download step 2(c).
bootloader 3.9 image 選擇 BL-39.bin
Click the browse button for the bootloader 4.6 image and select BL-46.bin file from download step 2(c).
bootloader 4.6 image 選擇 BL-46.bin
Finally click the OK button.
最後按 "OK"

(20) Pwnage Tool will ask you to select where to save the custom ipsw file. Click the Save button.
會提示新建IPSW擋案的儲存位置, 按 "Save"

(21) Pwnage Tool will then ask you to login using your administrator username and password.
會提示輸入Mac電腦administrator的username 及 password

(22) Input administrator username and password and then click the OK button.
輸入administrator的username 及 password, 按 "OK"

(23) PwnageTool will then show you that IPSW Builder has completed successfully.
會顯示已成功新建IPSW擋案

(24) Quit PwnageTool
關閉PwnageTool

(25) Launch iTunes using its icon in the dock.
在電腦開啟iTunes

(26) shut down your iPhone and put it in Recovery mode
then you will the the pineapple logo (instead of apple) and the parody Steve Jobs raising his hands when iPhone in Recovery Mode
iPhone應已關閉, 將iPhone 進入 DFU Mode及在iTunes顯示需要進行回復訊息後按"OK"
iPhone出現菠蘿logo(代替蘋果), 及回復圖像變成Steve Jobs

(27) Hold down the Option and click the Restore button in iTunes
在鍵盤上按Option及iTunes按 "回復"

(28) Select the custom firmware file (iPhone1,1_1.1.4_4A102_Custom_Restore.ipsw) that created in step (20) and click the Open button.
選擇在(20)步驟下新建的iPhone1,1_1.1.4_4A102_Custom_Restore.ipsw擋案, 按 "Open"

(29) iTunes will then restore to our new custom firmware.
iTunes 會顯示正進行回復, 並等待數分鐘

(30) Once iTunes restore is complete iPhone will reboot and autolaunch BootNeuter.
iPhone會重新啟動及自動開啟BootNeuter

(31) BootNeuter will then proceed to Flash Bootloader and Flash Baseband (Now flashing baseband.... and will take several minutes). Do not interrupt this process.
BootNeuter會進行 Flash Bootloader 及 Flash Baseband, 並等待數分鐘, 其間不要中斷

(32) Once BootNeuter is done it will reboot the iPhone on its own and your Pwnage process will be completed and disconnect from USB cable
BootNeuter完成後會重啟iPhone, 便可拔除 USB Cable

After reboot, you will have BootNeuter and Installer in your iPhone. BootNeuter is a dangerous tool on your iPhone, it is better to hide it or delete it from your iPhone.
重啟iPhone後會有BootNeuter及Installer. BootNeuter是一個危險工具, 最好隱藏或刪除.

(33) Connect iPhone to wifi and change Auto-Lock to Never and install the followings
iPhone 連接 wifi, 將IPhone設定自動鎖定為"永不", 及安裝以下軟件
BSD Subsystem 2.1 (must install first, 要先安裝)
Community Sources 3.7-1
OpenSSH 4.6p1-2
AppSupport Patch (1.1.4)
BossPrefs 1.62

Install other packages and input method / localisation that you like
安裝中文輸入及繁體中文化及其他你需要的軟件

http://www.iphone.org.hk/cgi-bin/ch/topic_show.cgi?id=5121&h=1&bpg=1&age=0

(34) Connect to iTunes and sync your music, video, ringtone, contacts and calendar etc. and test music and sound
When re-sync in iTunes, please choose "setup as a new iPhone" in iTunes, it will sync back the old contact list and calendar data etc
在iTunes同步你的音樂, 鈴聲, 聯絡人及行事曆等等及測試聲音, 在同步前iTunes會詢問, 請設定為"新 iPhone 電話"

(35) Enjoy your new iPhone 1.1.3 firmware and donate to NativeCN if you like, they have done a great job here
[享受你的iPhone新1.1.3 軟體,並響應NativeCN賣旗行動 , 以認定其工作]
http://www.iphone.org.hk/cgi-bin/ch/topic_show.cgi?id=4853&h=1&bpg=1&age=0

javacom 修改于 2008-06-21 03:36

javacom

版主

文章: 3083

于 2008-04-07 02:42

Pwnage Tool 升級1.1.4及軟解後常見問題集及解決方案
--------------------------------------------------------------------------
請先在 Installer 安裝 "BSD Subsystem 2.1"

(1) 不能連接EDGE, 不能輸入APN, 沒有WiFi, iPhone突然無聲及其他奇難雜症
解決方案:
Settings->General->Reset->Reset All Settings

(2) SMS 不能顯示人名, 電話號碼的顯示不是香港格式
解決方案:
Installer 安裝 "AppSupport Patch (1.1.4)"
Settings->General->International->Region Format 選擇 Hong Kong S.A.R. China

(3) 不能關閉EDGE
解決方案:
Installer 安裝 "BossPrefs"
在 BossPrefs 內關閉 EDGE

(4) 不能輸入中文
解決方案:
Installer 加 Source http://www.iphone.org.hk/repository.plist
安裝 "NativeCn Version 3.10a"

(5) Settings->General->International->Language 不能選擇中文
解決方案:
Installer 加 Source http://iphone4.tw/unlock/
安裝 "繁體中文化 version 1.1.4"

(6) SpringBoard 是否可以隱藏Application Icon (例如隱藏BootNeuter) ?
解決方案:
Installer 安裝 "BossPrefs"
選擇"More"-> "Dock Icons"
選擇你要隱藏的Application Icons

(7) BootNeuter有什麼用, 可否Uninstall ?
解決方案:
If someone was to constantly flash your bootloader you could break your phone. So its best to remove the application or at least hide it from the main screen.
建議刪除(在Build IPSW時選擇Auto delete BootNeuter.app) 或用上面隱藏的方法
BootNeuter的用途 :
http://wikee.iphwn.org/sgold_bootrom:bootneuter

(8) 怎樣製造 iPhone 的 Screen Capture ?
解決方案:
Installer 安裝 "BossPrefs"
選擇"More"-> "Enable Springboard Screenshot"

(9) 怎樣顯示彩色Carrier Logo ? / 怎樣輸入EDGE/GPRS APN 資料 ?
解決方案:
Installer 加 Source http://www.iphone.org.hk/attach/23644-hkcarrier.plist
安裝 "HK Carrier (COLOR)"

One2Free 客戶
加安裝 "HK Carrier - One2Free Patch"
CSL1010 客戶
加安裝 "HK Carrier - CSL1010 Patch"

參考
http://www.iphone.org.hk/cgi-bin/ch/topic_show.cgi?id=5207&h=1&bpg=1&age=0


 電訊服務商            APN
 -----------------   ------------------
 THREE               mobile.three.com.hk
 CSL/One2Free        HKCSL
 HK New World        internet
 PCCW                pccw
 Smartone-vodafone   smartone-vodafone
 PEOPLES             peoples.net

(10) Term-vt100 login 有問題
解決方案:
Installer 加 Source
http://iphone.lenlolabs.com
安裝 "Terminal version 207"
及 "BSD Subsystem 2.x SU Replacement version 2.1b"

(11) 怎樣將Voicemail 按鍵設定為打出查詢留言信箱
解決方案:
用 iPhone Keypad 打出以下號碼


 電訊服務商              打出號碼
 -----------------     -------------
 3(2G)                 *5005*86*91239123#
 3(3G)                 *5005*86*63323232#
 CSL/One2Free          *5005*86*988#
 HK New World          *5005*86*60331238#
 PCCW                  *5005*86*63888892#
 Smartone-vodafone     *5005*86*138#
 PEOPLES               *5005*86*218#

(12) 升級後使用Mac Terminal ssh/scp 出現錯誤信息
WARNING: REMOTE HOST IDENTIFICATION HAS CHANGED!

解決方案:
修改~/.ssh/known_hosts 及刪除iPhone IP address 的一行
或刪除整個檔案

rm ~/.ssh/known_hosts

(13) 可連接Wifi及上網, 但不能用SSH連接
解決方案:
Uninstall "Services" (如有)
Installer 安裝 "BossPrefs"
在 BossPrefs 內 Enable SSH

(14) 升級後iTunes設定為新電話後只能在同步後保存部份資料例如 Contacts, Safari Bookmarks, Calendar. 但 SMS, Notes, Call History, YouTube Bookmark 及 Map Bookmark 就沒有了.

解決方案:
如果你從1.1.3/4升級, 你可以先用scp/cyberduck 備份, 升級後再抄回原處

在1.1.3/4 Firmware, 資料在
SMS
/var/mobile/Library/SMS/sms.db

Notes
/var/mobile/Library/Notes/notes.db

Call History
/var/mobile/Library/CallHistory/call_history.db

YouTube Bookmark
/var/mobile/Library/YouTube/Bookmarks.plist

Maps Bookmark
/var/mobile/Library/Maps/*.plist

javacom 修改于 2008-04-24 21:33

javacom

版主

文章: 3083

于 2008-04-07 02:42

Pwnage Tool教學] 升級 Firmware 2.0 Beta 3 步驟 (build 5A240d)

Unless you have plenty of times to play with it or want to build SDK program, don't do this for beta 3 (build 5A240d), it still has bugs.

Firmware 2.0 Beta現時並不支援升級/降級Baseband, 升級/降級Baseband要在Firmware 1.1.4進行.
This method will not upgrade baseband to 04.05.01. If you want to upgrade your baseband, you should first do it in firmware 1.1.4, please follow this guide
http://www.hackint0sh.org/forum/showthread.php?t=38047
If you have upgraded baseband to 04.05.01 and want to go back to 1.1.4, you need to erase the baseband in firmware 1.1.4 after downgrade. Existing method does not allow you to upgrade or downgrade baseband in beta 2.0. It must all be done in firmware 1.1.4

(1) You need to be very sure that you want to test this beta firmware 2.0
要明白試驗測試版本的風險

(2) You must first use PWNAGE first and have restored the custom firmware for 1.1.4. Keep that custom firmware 1.1.4 (iPhone1,1_1.1.4_4A102_Custom_Restore.ipsw) in your Mac and in case you don't like the beta firmware 2.0, you can option-restore back to the custom 1.1.4 that you have created. It is preferable to create another IPSW file for restore point to Firmware 1.1.4 as well.
要先將iPhone在1.1.4下完成Pwn後, 並保存原先製造的iPhone1,1_1.1.4_4A102_Custom_Restore.ipsw檔案, 在嘗試過Beta後可回復到1.1.4版本. 另外建議再製造另一IPSW檔案作回復點.

(3) 2.0 Beta works on top of the 1.1.4 Enable baseband update, Neuter bootloader, Unlock baseband and Activate. So you have to unlock your phone in 1.1.4 THEN upgrade to 2.0.
確定iPhone 已在1.1.4 Enable baseband update, Neuter bootloader, Unlock baseband 及 Activate.

(4) Make sure that you have installed BSD subsystem and SSH in existing firmware 1.1.4, as there is no Installer in Beta 2.0 firmware. Moreover, sync with iTunes and back up data and book marks
確定iPhone在1.1.4版本已安裝 BSD Subsystem及SSH, Beta 2.0 版本將沒有Installer. 在iTunes 作同步及備份.

(5) google search iPhone1_1_2.0_5A240d_Restore.ipsw and they are plenty of torrents out there
用Google找尋2.0 Beta軟件
md5 iPhone1_1_2.0_5A240d_Restore.ipsw = 429142d57db7cf94d4c29ee4da7f21cc

製造自定Firmware 2.0
(6) Double click PwnageTool (version 1.1) to launch the application.
在電腦開啟 PwnageTool (version 1.1)

(7) Click the Browse .ipsw button in PwnageTool.
滑鼠接 "Browse .ipsw"

(8) A window will appear in which you should choose the iPhone1_1_2.0_5A240d_Restore.ipsw that downloaded in step (5) then click the Open button.
選擇在步驟(5)下載的2.0 beta軟體版本, 滑鼠按 "Open"

(9) Click the IPSW Builder button in PwnageTool.
From the menu that appears select:
在PwnageTool內滑鼠接 "IPSW Builder"
滑鼠選擇
- Activate phone
Then click the OK button.
及按 "OK"

If you want to make boot images yourself, pleas read this thread
如你想自製Boot images, 請參考
http://hackint0sh.org/forum/showthread.php?t=38010

(10) Pwnage Tool will ask you to select where to save the custom ipsw file. Click the Save button.
會提示新建IPSW檔案的儲存位置, 按 "Save"

(11) Pwnage Tool will process the file
接著會處理檔案

(12) Pwnage Tool will then ask you to login using your administrator username and password.
會提示輸入Mac電腦administrator的username 及 password

(13) The processed image file will also be mounted
已處理好的鏡像檔案會出現

(14) You can use Terminal to copy the necessary files to the custom image before ziping
此時可用Terminal, 在壓縮前加入需要附加的檔案

(15) Input administrator username and password and then click the OK button.
輸入administrator的username 及 password, 按 "OK"

(16) PwnageTool will then show you that IPSW Builder has completed successfully.
會顯示已成功新建IPSW擋案

(17) Quit PwnageTool
關閉PwnageTool

(18) Launch iTunes using its icon in the dock.
在電腦開啟iTunes

(19) shut down your iPhone and put it in Recovery mode
and use iTunes Option-Restore the created custom firmware file iPhone1,1_2.0_5A240d_Custom_Restore.ipsw
IPhone應已關閉, 將iPhone 進入 Recovery Mode

在iTunes用Option+Restore方法並選擇 iPhone1,1_2.0_5A240d_Custom_Restore.ipsw進行回復

(20) Wait for a few minutes for iTunes to restore the custom firmware
等候數分鐘, iTunes將回復自製firmware

(21) Once iTunes restore is complete your iPhone will reboot and you will be in the new 2.0 Beta Firmware.
iPhone會重新啟動便會進入2.0 Beta Firmware

(22) Connect to iTunes (version 7.6.2) and sync your music, video, ringtone, contacts and calendar etc. and test music and sound
When re-sync in iTunes, please choose "setup as a new iPhone" in iTunes, it will sync back the old contact list and calendar data etc
在iTunes (7.6.2版本) 同步你的音樂, 鈴聲, 聯絡人及行事曆等等及測試聲音, 在同步前iTunes會詢問, 請設定為"新 iPhone 電話"

javacom 修改于 2008-04-16 10:12

javacom

版主

文章: 3083

于 2008-04-07 02:44

Pwnage Tool 升級 firmware beta 2.0 後常見問題集
--------------------------------------------------------------------------

(1) 沒有Installer, 不能安裝軟件
解決方案:
大部份用UIKit Foundation Framework 的1.1.4 軟件都不能在Firmware 2.0運行
但可用 ssh / wget / bsd unix command
lighttpd 及 PHP 都可以用, 但要用scp 或 wget 安裝

或用idemocracy 安裝軟件
http://code.google.com/p/idemocracy/downloads/list

或用SDK beta 3 build to device & release
You can try nes.app build to device with source code from
http://www.zdziarski.com/projects/nesapp/

及用 Erica Utilities
You can also use the Erica Utilities for iPhone firmware 2.0
http://ericasadun.com/ftp/Erica%20Utilities%20for%20iPhone%202.0/

(2) SMS 不能顯示人名, 電話號碼的顯示不是香港格式
未解決方案:
Firmware 2.0 沒有 AppSupport Patch
Settings->General->International->Region Format 選擇 HK

(3) 不能關閉EDGE
解決方案:
APN 輸入 : DISABLED

(4) 不能輸入中文
解決方案:
可安裝 WeFIT
http://www.weiphone.com/thread-99105-1-1.html

(5) 怎樣令iPhone中文化
解決方案:
Settings->General->International->Language
選擇繁體中文

(6) 怎樣製造 iPhone 的 Screen Capture ?
解決方案:
Firmware 2.0已內建Screen Capture功能
按Home + sleep button

如有iPhone SDK beta 3, 可在XCode內Organizer 做 Screen Capture.

(7) 怎樣顯示彩色Carrier Logo ? / 怎樣輸入EDGE/GPRS APN 資料 ?
解決方案:
下載 http://www.iphone.org.hk/attach/23642-hk295.zip
自行安裝 "HK Carrier (COLOR)"

參考
http://www.iphone.org.hk/cgi-bin/ch/topic_show.cgi?id=5207&h=1&bpg=1&age=0


  電訊服務商            APN
  -----------------   ------------------
  THREE               mobile.three.com.hk
  CSL/One2Free        HKCSL
  HK New World        internet
  PCCW                pccw
  Smartone-vodafone   smartone-vodafone
  PEOPLES             peoples.net

(8) 怎樣將Voicemail 按鍵設定為打出查詢留言信箱
解決方案:
用 iPhone Keypad 打出以下號碼


  電訊服務商                打出號碼
  -----------------     -------------
  3(2G)                 *5005*86*91239123#
  3(3G)                 *5005*86*63323232#
  CSL/One2Free          *5005*86*988#
  HK New World          *5005*86*60331238#
  PCCW                  *5005*86*63888892#

  Smartone-vodafone     *5005*86*138#
  Smartone-vodafone     *5005*86*90100138#
  PEOPLES               *5005*86*218#
  PEOPLES               *5005*86*92089218#

(9) 升級後使用Mac Terminal ssh/scp 出現錯誤信息
WARNING: REMOTE HOST IDENTIFICATION HAS CHANGED!

解決方案:
修改~/.ssh/known_hosts 及刪除iPhone IP address 的一行
或刪除整個檔案

rm ~/.ssh/known_hosts

(10) 升級Firmware 2.0後iTunes要升級7.6.2 才能同步
解決方案:
升級iTunes 7.6.2

(11) 升級後iTunes設定為新電話後只能在同步後保存部份資料例如 Contacts, Safari Bookmarks, Calendar. 但 SMS, Notes, Call History, YouTube Bookmark 及 Map Bookmark 就沒有了.

解決方案:
如果你從1.1.3/4升級, 你可以先用scp/cyberduck 備份, 升級後再抄回原處

在1.1.3 Firmware, 資料在
SMS
/var/mobile/Library/SMS/sms.db

Notes
/var/mobile/Library/Notes/notes.db

Call History
/var/mobile/Library/CallHistory/call_history.db

YouTube Bookmark
/var/mobile/Library/YouTube/Bookmarks.plist

Maps Bookmark
/var/mobile/Library/Maps/*.plist

(10) 升級Firmware 2.0後, 發現Safari 很慢, 不穩定, 有時不能Connect Wifi, 802.1X 不能 Connect, Reset All settings 會令iPhone 停頓.

未解決方案:
Firmware 2.0 beta 是有問題的, 有可能由於Baseband 仍是04.04.05_G

(11) 當用 SDK 開新Project, build to device 出現 Codesign error: no certificate for identifier "iPhone Developer" was found in your keychain

解決方案:
edit project template file


 /Developer/Platforms/iPhoneOS.platform/Developer/Library/Xcode/Project Templates/Application/Cocoa Touch Application/___PROJECTNAME___.xcodeproj/project.pbxproj

and comment out the two code signing signature settings in the file and recreate another new project


 /*                              "CODE_SIGN_IDENTITY[sdk=iphoneos*]" = "iPhone Developer"; */

(12) SSH root 如何改Password
iphone 上有兩個文件
/etc/master.passwd
/etc/passwd
其內容首兩行是


 root:/smx7MYTQIi2M:0:0:System Administrator:/var/root:/bin/sh
 mobile:/smx7MYTQIi2M:501:501:Mobile User:/var/mobile:/bin/sh

iPhone 的encrypt password 是根據這原理產生
在Mac Terminal 內執行


 openssl passwd -crypt -salt /s alpine

結果是

/smx7MYTQIi2M

解決方案:
例如你想新的Password是 newpass
在Mac Terminal 內執行

openssl passwd -crypt -salt /s newpass

再將執行結果

/seW7g7gPCcT6

更改iPhone 上檔案的相對內容
/etc/master.passwd
/etc/passwd

javacom 修改于 2008-05-31 08:44

spencerch

版主

文章: 905
來自: apple.com

于 2008-04-07 11:02

PUSH...

waiting for Windows version...

javacom

版主

文章: 3083

于 2008-04-13 13:18

http://www.winpwn.com/

javacom 修改于 2008-04-13 15:07

javacom

版主

文章: 3083

于 2008-04-15 13:41

Pwnage Tool updated to 1.1
and now support
iPhone/iPod firmware 2.0 5A240d support

http://wikee.iphwn.org/news:pwnage1dot1_announcement

louis

版主

文章: 4023

于 2008-04-15 14:11

javacom wrote:
Pwnage Tool updated to 1.1
and now support
iPhone/iPod firmware 2.0 5A240d support

http://wikee.iphwn.org/news:pwnage1dot1_announcement

勁
又學到野
得閒玩下先

謝謝

javacom

版主

文章: 3083

于 2008-04-15 17:58

Firmware 2.0 Beta 3 build 5A240
You need iTunes 7.6.2 in order to sync beta 3

Home screen after pwnage tool
If you use pwnage tool, the baseband is not updated and will remain at 04.04.05_G.

Region Format support HK
Phone Number Format

Safari under EDGE OK
Safari under Wifi OK

New Calculator

HK Carrier Bundle & 繁體中文

iPod Video

YouTube under EDGE OK
Google Map under EDGE OK

SDK beta 3 connection and build to device OK

GL teapot SDK build OK

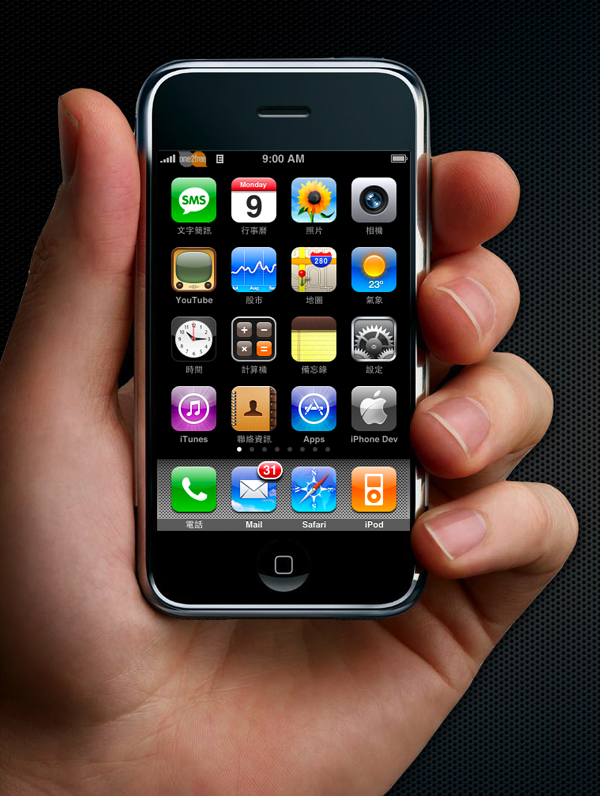

Finally the homescreen with chinese language OK

javacom 修改于 2008-06-08 09:19

louis

版主

文章: 4023

于 2008-04-15 18:29

javacom wrote:
More to come. It is not that buggy now.
You need iTunes 7.6.2 in order to sync beta 3

搵唔到隻pc 版

javacom

版主

文章: 3083

于 2008-04-15 18:38

louis wrote:

javacom wrote:
More to come. It is not that buggy now.
You need iTunes 7.6.2 in order to sync beta 3

搵唔到隻pc 版

PC version is delayed. You have to wait some days.

http://www.winpwn.com/

louis

版主

文章: 4023

于 2008-04-19 10:04

javacom wrote:

louis wrote:

javacom wrote:
More to come. It is not that buggy now.
You need iTunes 7.6.2 in order to sync beta 3

搵唔到隻pc 版

PC version is delayed. You have to wait some days.

http://www.winpwn.com/

唔駛再flash 個bl 咁好喎, 乾手淨腳

定係我仲漏左

javacom

版主

文章: 3083

于 2008-04-19 10:45

I suggest you don't use winpwn, it is beta and disable some functions

louis

版主

文章: 4023

于 2008-04-20 01:45

javacom wrote:
I suggest you don't use winpwn, it is beta and disable some functions

但奇怪一樣野原本3.6 bl 又整個4.6 bl 落去唔知搞乜
可能遲下會出個更方便既方法去update 上2.0 但相信必要等正式出2.0 之後至出現, 而發現ziphone 其實係一個幾冒險既破解方法, 所以而家就算d 人要搞1.1.4 都會叫佢地用iplus, 方便d 人唔駛搞咁多
winpwn 發覺dll 方面已download 唔到, 都係搞埋部pc 轉mac 至玩

javacom

版主

文章: 3083

于 2008-04-20 09:50

但奇怪一樣野原本3.6 bl 又整個4.6 bl 落去唔知搞乜
可能遲下會出個更方便既方法去update 上2.0 但相信必要等正式出2.0 之後至出現, 而發現ziphone 其實係一個幾冒險既破解方法, 所以而家就算d 人要搞1.1.4 都會叫佢地用iplus, 方便d 人唔駛搞咁多
winpwn 發覺dll 方面已download 唔到, 都係搞埋部pc 轉mac 至玩

If you don't develop programs using SDK, there is no need to goto firmware 2.0. And if you need to develop program using SDK, you need a machine running Mac OS X 10.5.2. So get a running Mac OS X is a pre-requisite for going to firmware 2.0

I have been running firmware beta 2.0 beta 3 (with 04.04.05_G) for nearly a week, there is not much problem when using the phone/SMS/email/Safari functions and with the SDK build features as well.

It is much better than the previous beta versions and is now a working beta phone at least.

◇ 哎．瘋．人．網 ◇ Unlock◇哎瘋解鎖◇ 顯示適合列印的版本寄給朋友

看過的文章

新的文章

被刪除的文章

跳轉到

[錯誤信息]

Table './iphone1/ut_online' is marked as crashed and should be repaired

請通知討論區管理員 <kk@hkfoot.com>。
